Deploy Ignition for Cluster

This article refers to Platform v3.4.0. The current Platform version is v3.4.0.

Overview​

A single Ignition or Ignition Edge gateway represents a single point of failure. If the gateway becomes unavailable (whether due to maintenance, hardware failure, or an operating system crash), client sessions disconnect and data collection stops until service is restored.

Ignition for Cluster and Ignition Edge for Cluster provide high availability through a Hot Standby redundancy architecture. Two Ignition gateways run side by side: a Master gateway that serves all client traffic and a Backup gateway that continuously synchronizes its state with the Master through the Ignition Gateway Network.

A Traefik reverse proxy sits in front of both gateways and exposes a single endpoint to users and applications. If the Master becomes unavailable, Traefik automatically redirects traffic to the Backup while Ignition promotes it to active status. As a result, clients experience only a brief reconnection and no manual intervention is required.

Barbara automates the deployment of the entire stack, including the Master gateway, Backup gateway, Traefik, and the initialization service required to prepare the cluster. Once deployed, Ignition's redundancy engine continuously synchronizes both gateways and manages role transitions automatically.

How high availability and failover work​

Gateway failover​

Traefik monitors the active gateway through Ignition's /StatusPing endpoint every 5 seconds, with a 3-second timeout. If the health check fails, Traefik automatically redirects HTTP traffic to the Backup in approximately 5–8 seconds.

Ignition's redundancy engine then completes the failover process by promoting the Backup to Master. This promotion typically takes an additional 30 seconds, ensuring the newly promoted gateway assumes control with a fully synchronized state.

Because traffic routing and gateway promotion are handled independently, clients typically experience only a brief reconnect while the cluster continues operating normally.

TCP protocol failover​

Industrial protocols such as OPC-UA, MQTT, Modbus, BACnet, and DNP3 are exposed through Traefik and distributed between the Master and Backup gateways while both are healthy.

If one gateway fails its connection-level health check, all new protocol connections are automatically routed to the remaining healthy gateway. Existing sessions may need to reconnect, depending on the protocol and client implementation.

Infrastructure requirements​

The Ignition redundancy pair provides application-level high availability: gateway services remain available when a node or gateway fails. However, the redundancy pair alone does not guarantee full cluster-level high availability.

Docker Swarm relies on the Raft consensus protocol, which requires a majority of manager nodes to remain reachable. In a two-manager cluster, the required quorum is 2 out of 2. If either manager fails, the remaining node continues running existing workloads, but the Swarm control plane can no longer schedule, update, or recover services automatically.

For this reason, production deployments should use three Swarm manager nodes. With three managers, quorum becomes 2 out of 3, allowing the cluster to tolerate the loss of any single node while remaining fully operational.

Our cluster applications therefore run best on a Barbara cluster with three active nodes. If your cluster does not exist yet, follow the Clusters guide to create one and ensure all nodes are in Active availability status.

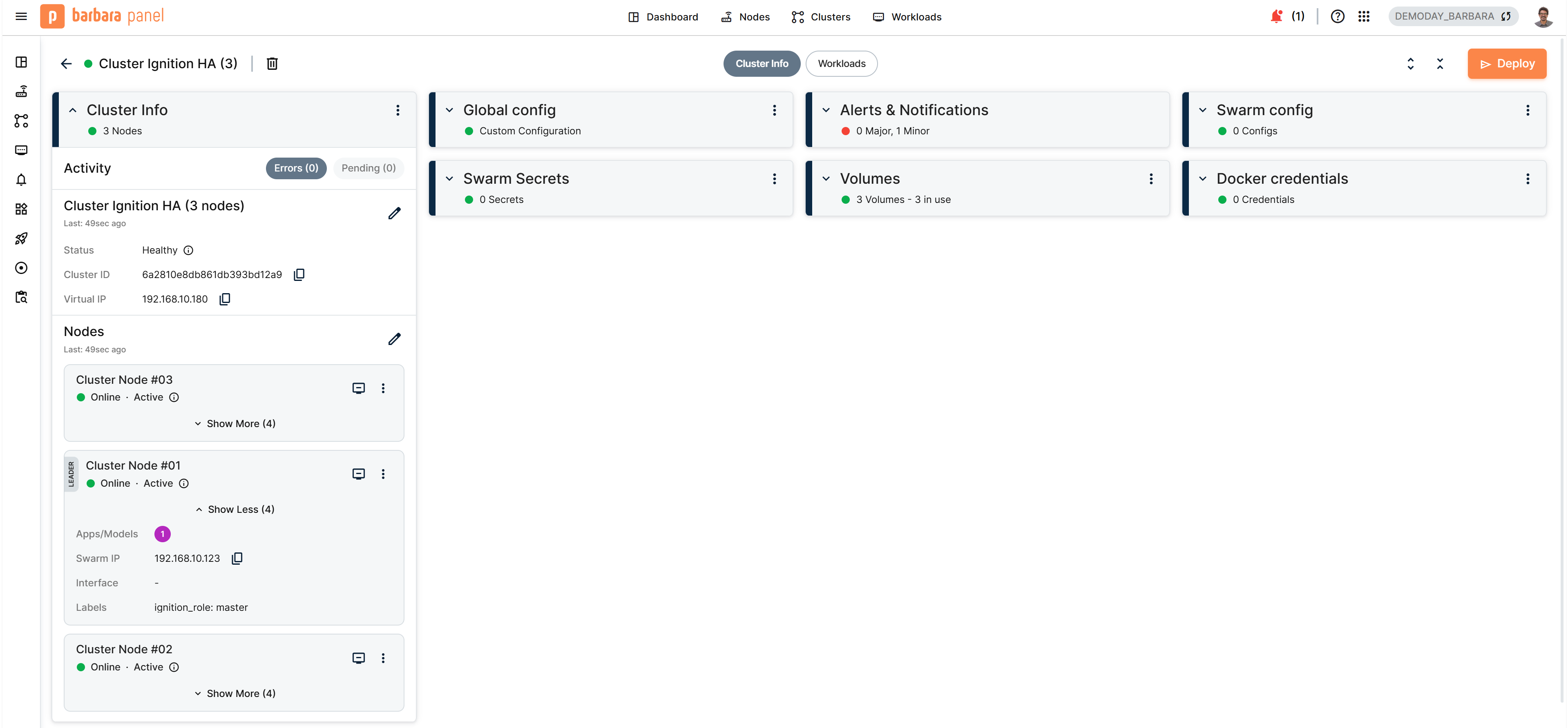

Barbara Panel Cluster Info tab for a healthy three-node cluster, with all three nodes Online and Active and the Volumes card showing no volumes yet

A three-node cluster ready for deployment

In this tutorial, you will deploy Ignition for Cluster, verify that redundancy is operating correctly from the Ignition Gateway UI, and configure both gateways from the application settings instead of the Designer. The same steps apply to both Ignition for Cluster and Ignition Edge for Cluster.

Add Ignition for Cluster to your Library​

If the edition you want is not yet in your Library, add it from Barbara Marketplace:

Marketplace badge
Ignition for Cluster icon

Ignition for Cluster

Ignition for Cluster packages the full Ignition SCADA platform as a high-availability deployment, running two redundant instances in your cluster for continuous, uninterrupted operation.

Marketplace badge
Ignition Edge for Cluster icon

Ignition Edge for Cluster

The lightweight Ignition Edge edition deployed as a Hot Standby redundancy pair, bringing high-availability local SCADA and IIoT to edge sites.

For the full add-to-Library flow, see Add a Marketplace app to your Library.

Create cluster volumes​

Before deploying Ignition for Cluster, create one persistent volume for each service that keeps state: Traefik, the Master gateway, the Backup gateway, and the configuration service that applies your Application Config settings. Open your cluster from the Clusters list and go to Cluster Info. In the Volumes card, click + to add a new volume.

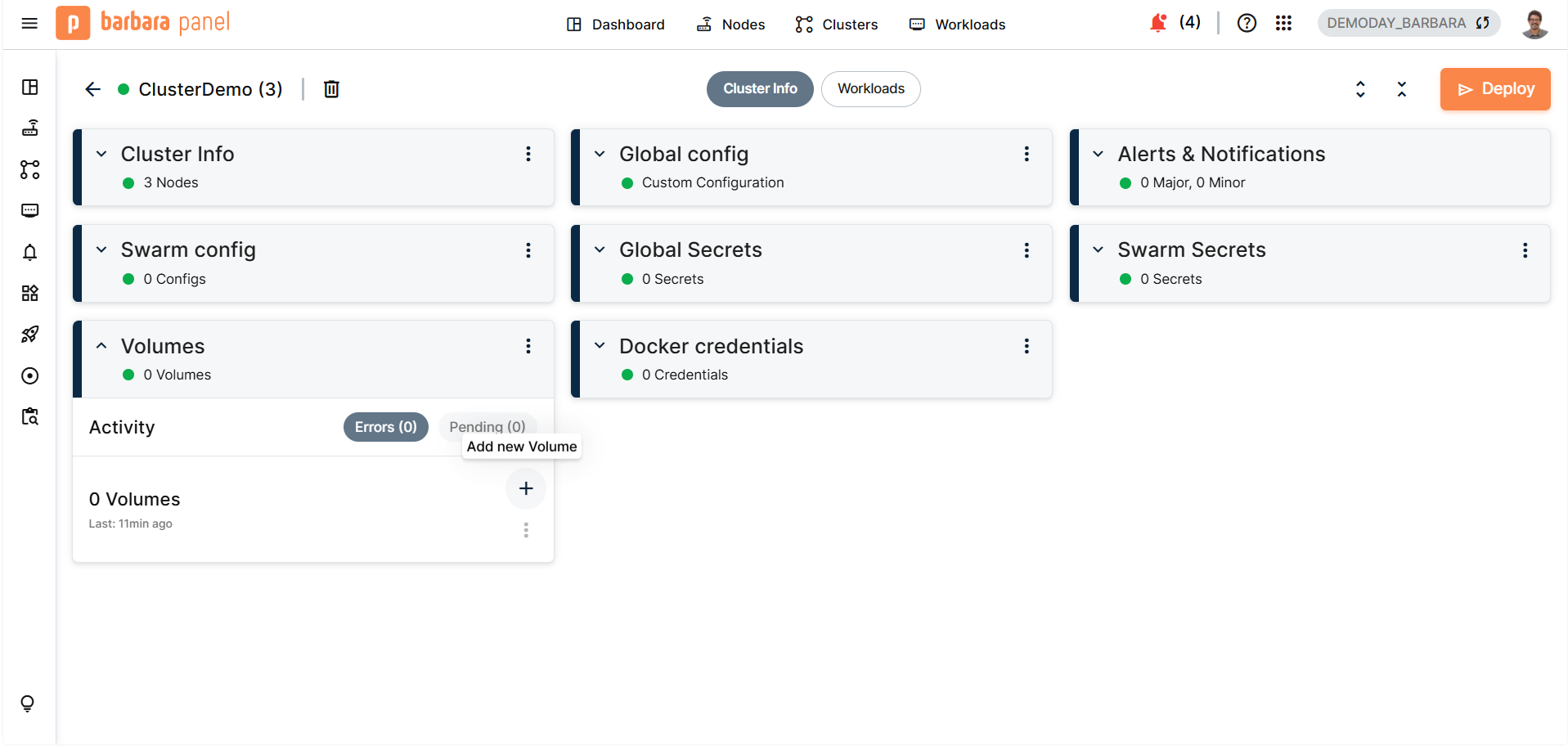

Cluster Info page with the Volumes card expanded and the Add new Volume tooltip visible over the + button

The Volumes card in Cluster Info

Create the following four volumes. In the Add new Volume dialog, enter each name and click Add:

Add new Volume dialog with the Name field containing Ignition_vol_01 and the Add button

Add new Volume dialog

Volume nameUsed by
Ignition_vol_01Traefik
Ignition_vol_02Master gateway (gateway)
Ignition_vol_03Backup gateway (gatewayr)
Ignition_vol_04Configuration service (ignition_config)

Once created, each volume appears in the Volumes card with status Not in use, which is expected before deployment:

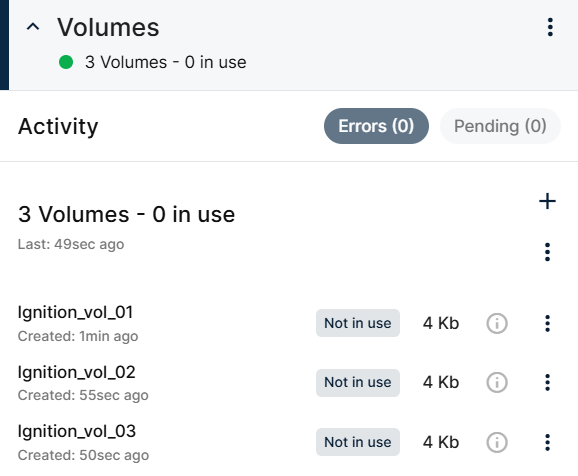

Volumes card listing the cluster volumes with status Not in use

Cluster volumes created

Open the cluster and start the wizard​

Open your cluster from the Clusters list in the Barbara Panel.

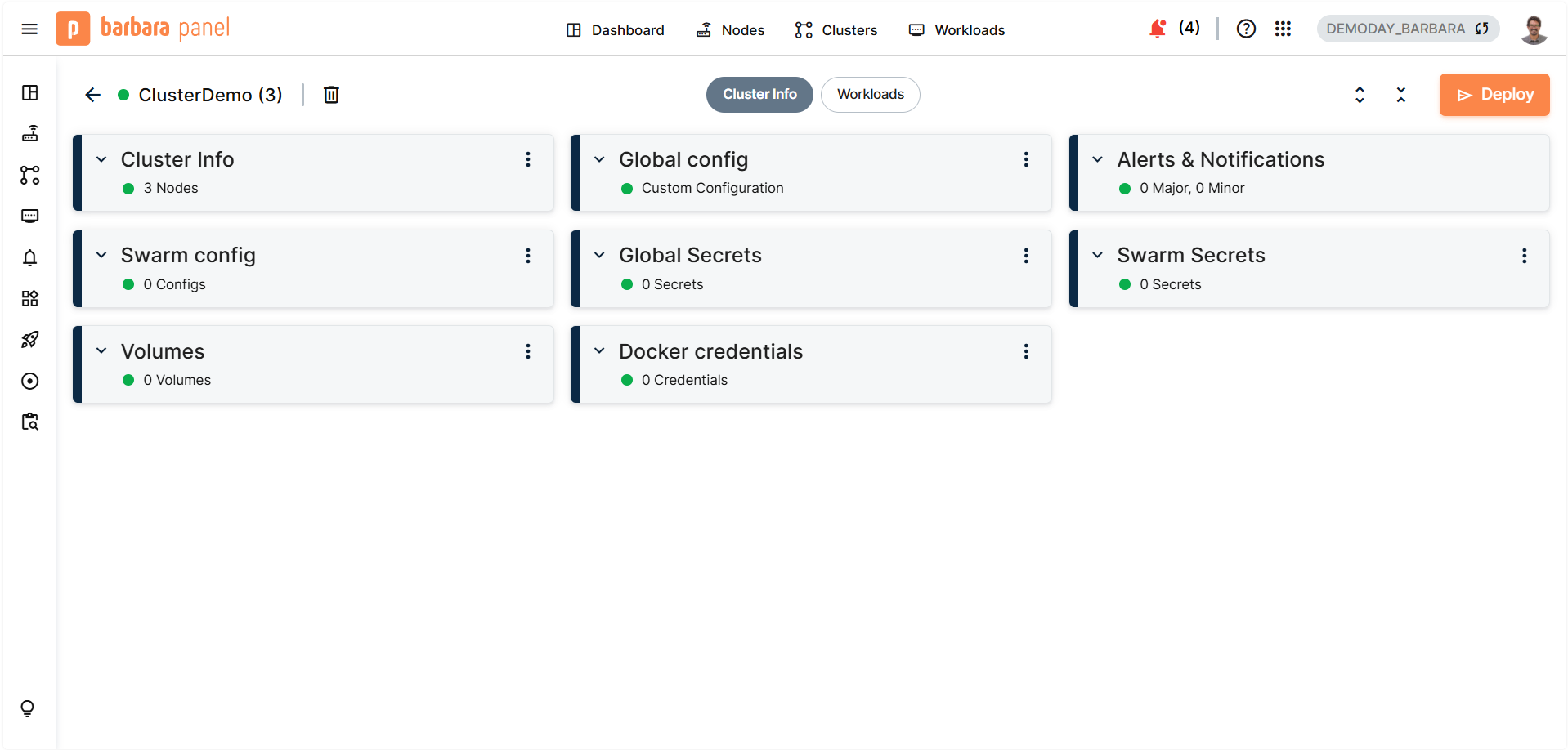

Barbara Panel cluster detail page showing the Cluster Info tab with cards for Cluster Info (3 Nodes), Global config, Alerts and Notifications, Swarm config, Global Secrets, Swarm Secrets, Volumes, and Docker credentials

Cluster detail view

Click Deploy to open the installation wizard.

1) Command settings​

Select the application you want to deploy (Ignition for Cluster or Ignition Edge for Cluster) and the version, then click Next. The remaining steps are identical for both editions.

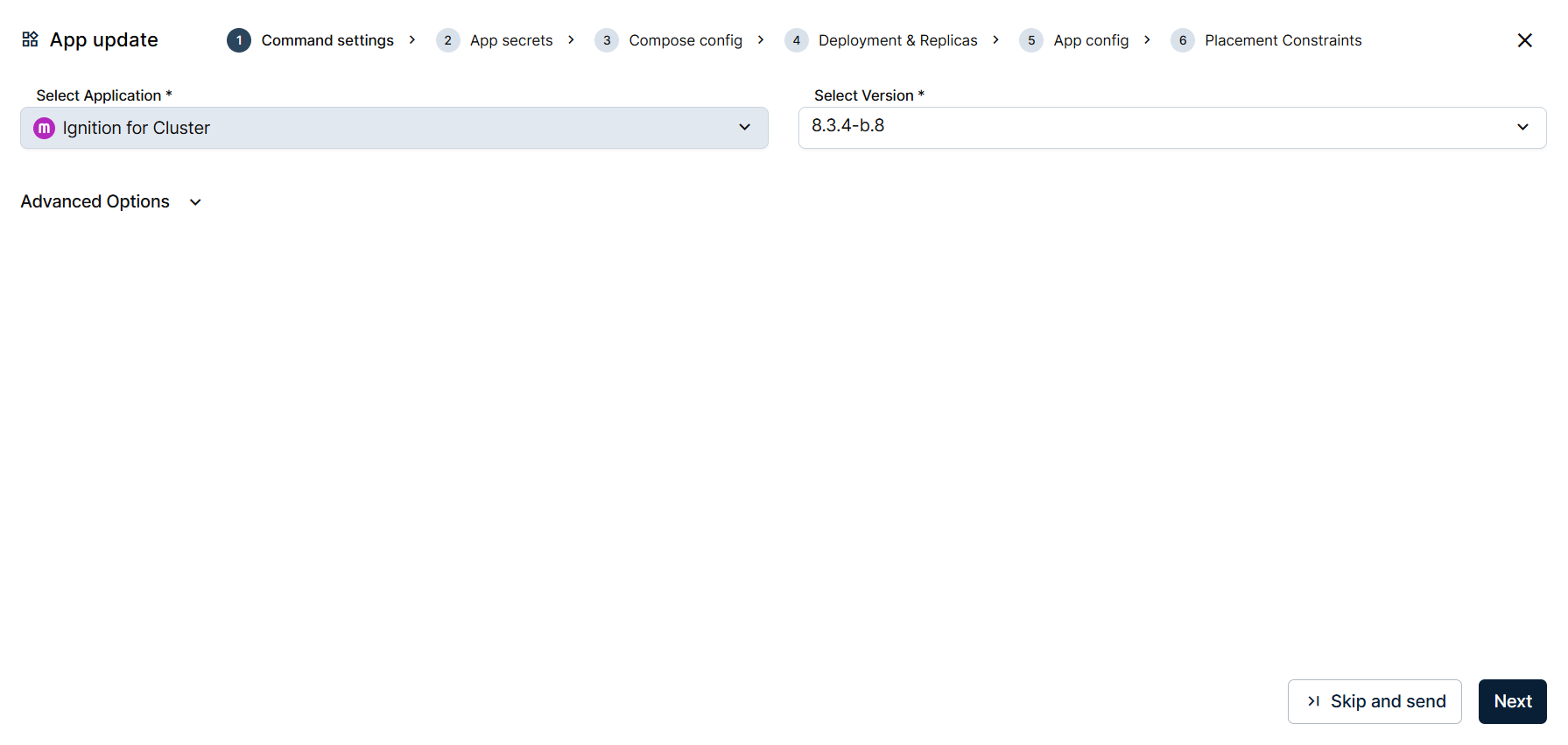

App install wizard on the Command settings step with Ignition for Cluster selected at version 8.3.8-b.21

Selecting Ignition for Cluster

2) App secrets​

The App secrets step has one tab per service: traefik, gateway, gatewayr, bbrinit, and ignition_config. For this tutorial you change three settings; keep the defaults for everything else.

On the traefik tab, set TLS_MODE to selfsigned. Traefik generates a self-signed certificate and automatically redirects HTTP traffic to HTTPS. This is sufficient for clusters running on private networks, where no public domain or external certificate authority is required.

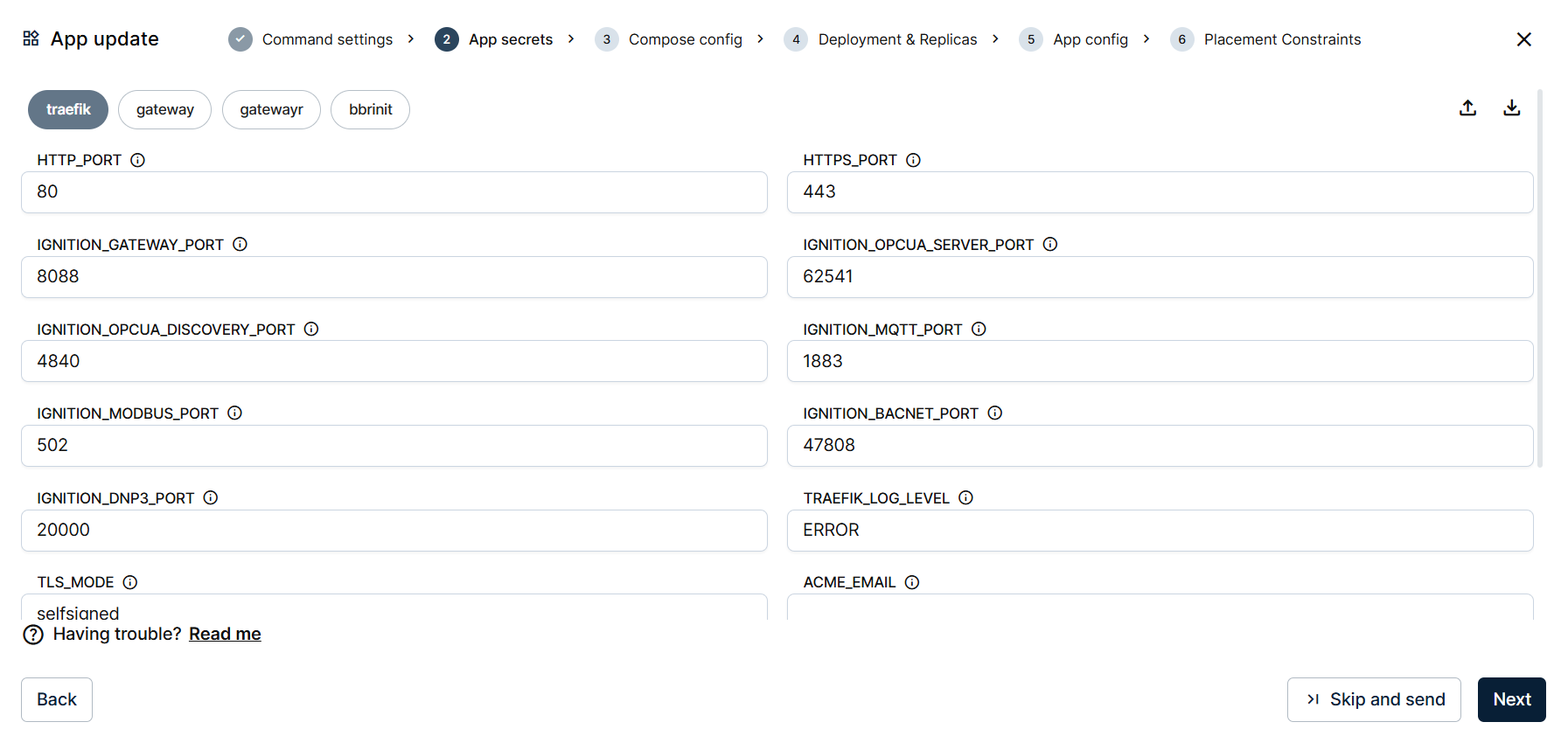

App Secrets step 2, traefik tab showing HTTP_PORT, HTTPS_PORT, IGNITION_GATEWAY_PORT, protocol ports, TRAEFIK_LOG_LEVEL, TLS_MODE, and ACME_EMAIL fields

App secrets: traefik tab

On the gateway tab (the Master), set ACCEPT_IGNITION_EULA to Y. The Master will not start without it.

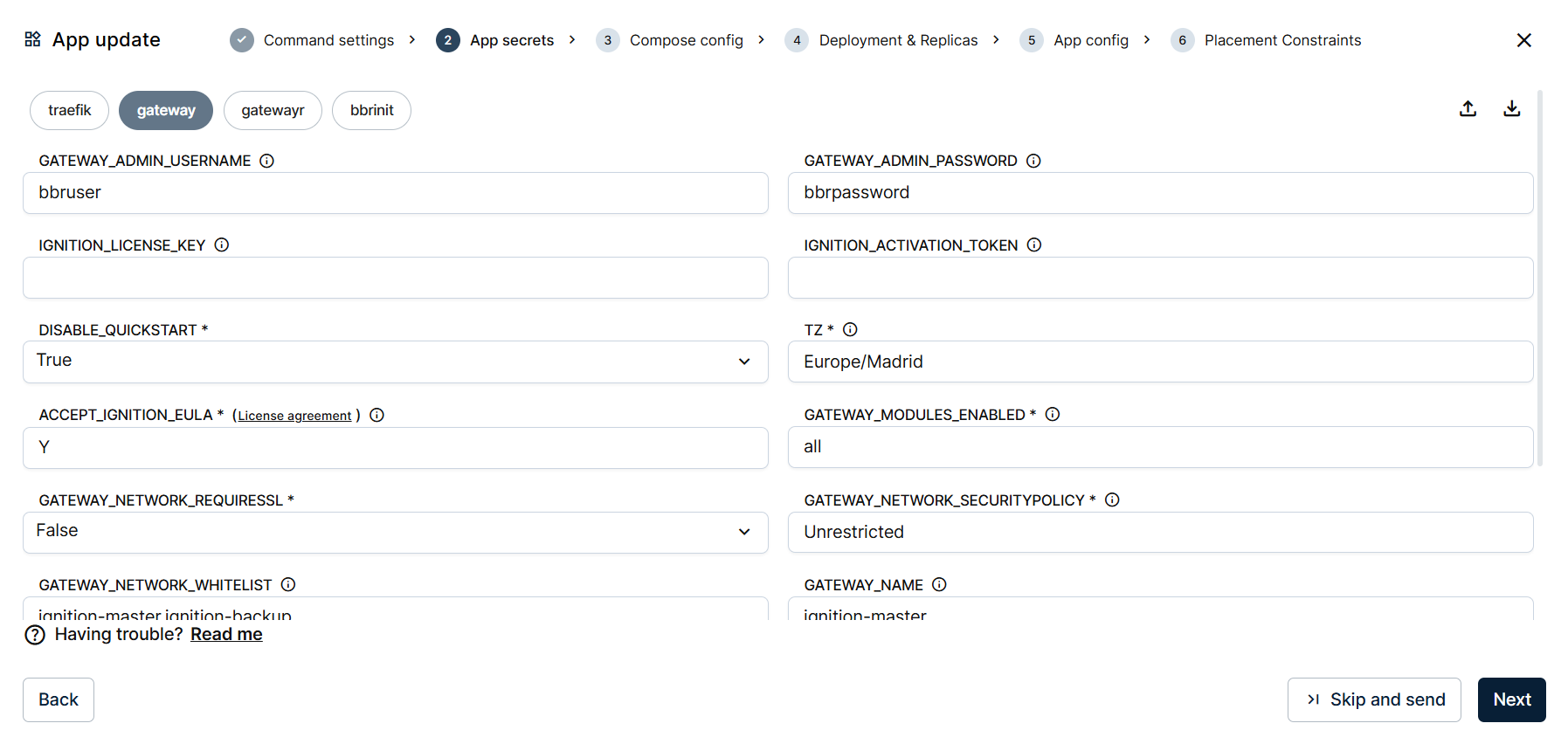

App secrets step, gateway tab showing GATEWAY_ADMIN_USERNAME, GATEWAY_ADMIN_PASSWORD, DISABLE_QUICKSTART, TZ, ACCEPT_IGNITION_EULA, GATEWAY_MODULES_ENABLED, GATEWAY_NAME, PUBLIC_WEB_ADDRESS and GATEWAY_MAX_MEMORY

App secrets: gateway tab

Leave the gatewayr (Backup) tab unchanged.

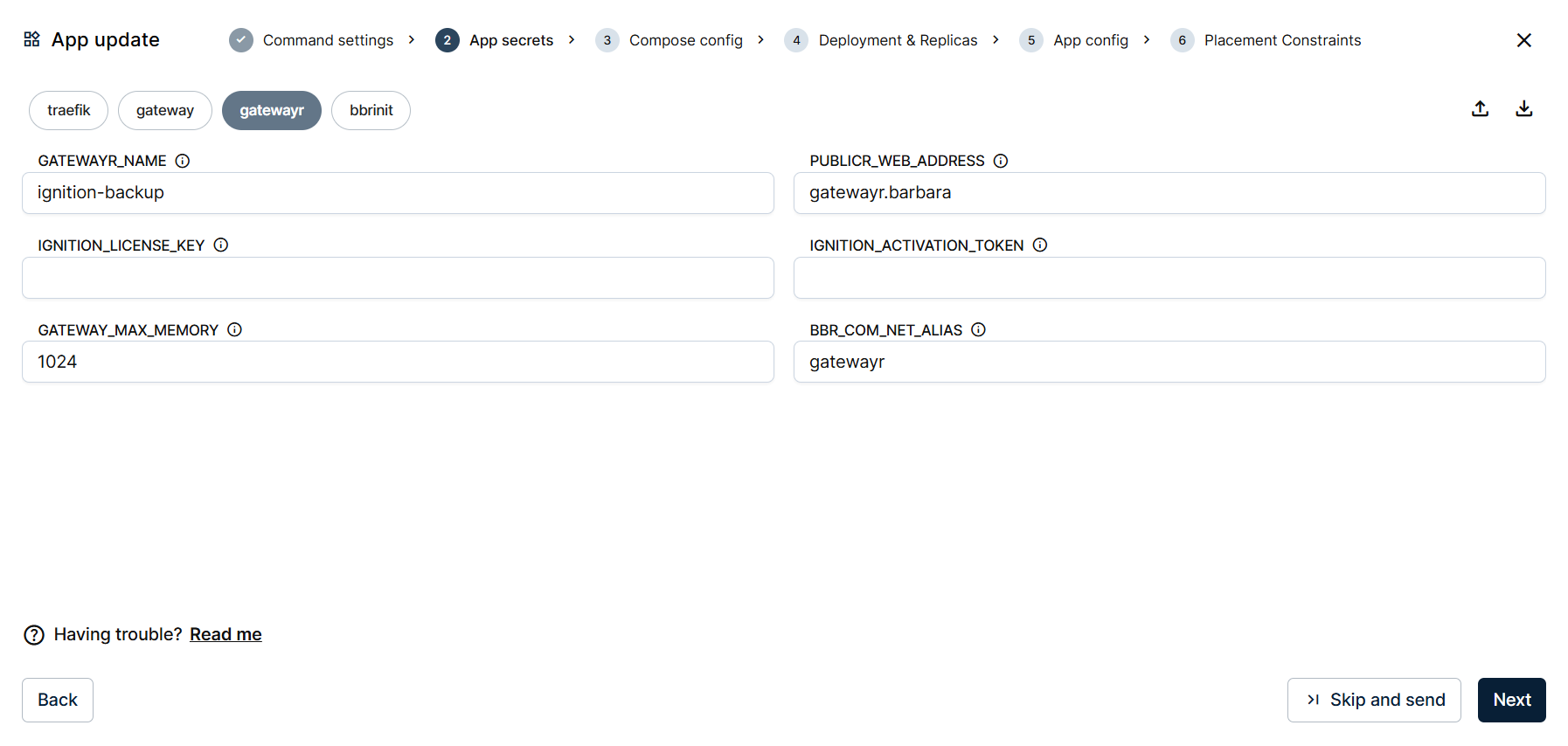

App Secrets step 2, gatewayr tab showing GATEWAYR_NAME set to ignition-backup, PUBLICR_WEB_ADDRESS set to gatewayr.barbara, and GATEWAY_MAX_MEMORY set to 1024

App secrets: gatewayr tab

There is nothing you have to set on the bbrinit tab.

Even so, the Application Config secret field is worth knowing about. Barbara turns it into the access key the configuration service uses to talk to the gateways, and generates that key for you when the field is empty. Set it to a phrase of your own, at least 24 characters, when you want the key to be reproducible: derived from a phrase you keep, it can be regenerated, which is the way back if the configuration volume is ever lost while the gateway volumes survive.

The rest of the tab is optional too. To start the pair from an existing gateway backup, set SOURCE_URL and enable BOOTSTRAP, following the same process described in Deploy Ignition. To give the gateways credentials they need without writing them into the configuration, such as the password of an OPC UA server it connects to, set Gateway secrets as described under Secrets.

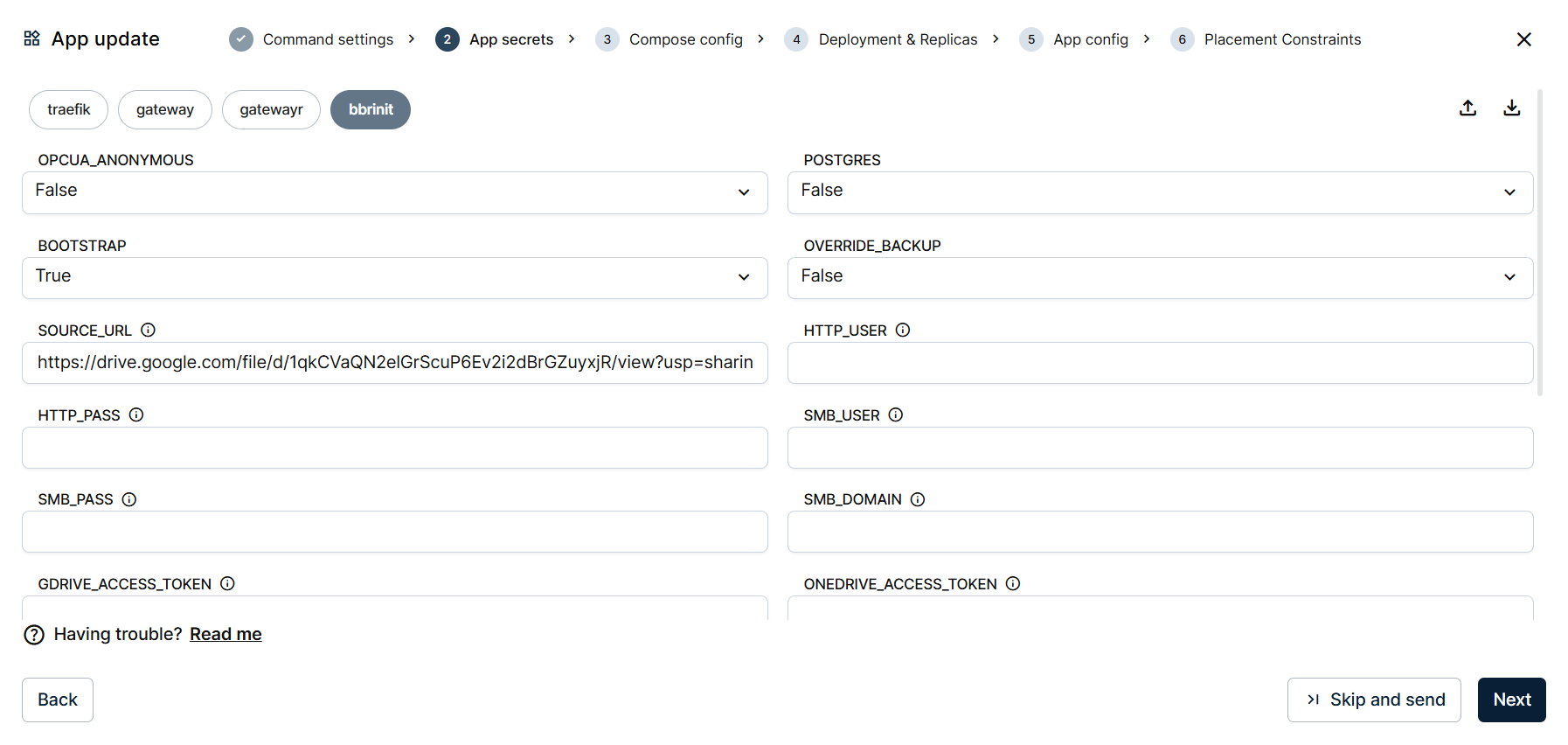

App secrets step, bbrinit tab showing BOOTSTRAP, OVERRIDE_BACKUP, SOURCE_URL, download credentials, SYSTEM_STATE_UID, GLUSTER_SYNC_WAIT_MS, BBR_CONFIG_SECRET and IGNITION_SECRETS

App secrets: bbrinit tab

Leave the ignition_config tab unchanged. Its only setting, IGNITION_API_TOKEN, is for the case where you bring your own gateway backup that already carries an access key and want to keep that one.

App secrets step, ignition_config tab showing a single empty IGNITION_API_TOKEN field

App secrets: ignition_config tab

Looking for the full reference?

Every configuration variable and its default value is documented in the application's technical notes on the Barbara Marketplace.

3) Compose config​

In the Compose config step, assign each service to the volume you created for it. Set VOLUME_TRAEFIK to Ignition_vol_01 on the traefik tab. Keep the port mappings as they are.

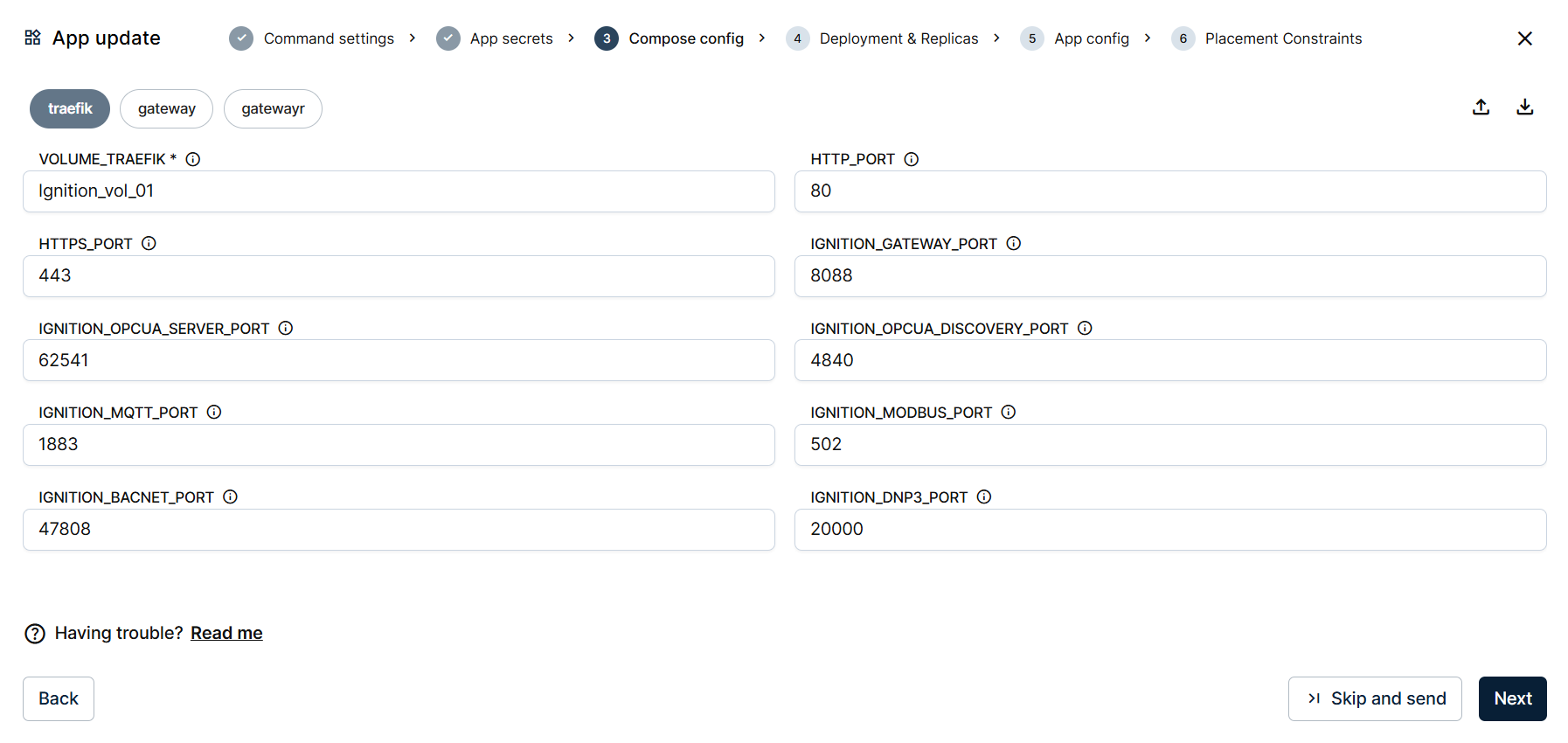

Compose Config step 3, traefik tab showing VOLUME_TRAEFIK set to Ignition_vol_01 and all protocol port fields with default values

Compose config: traefik tab

Set VOLUME_IGNITION_GW_DATA to Ignition_vol_02 on the gateway tab.

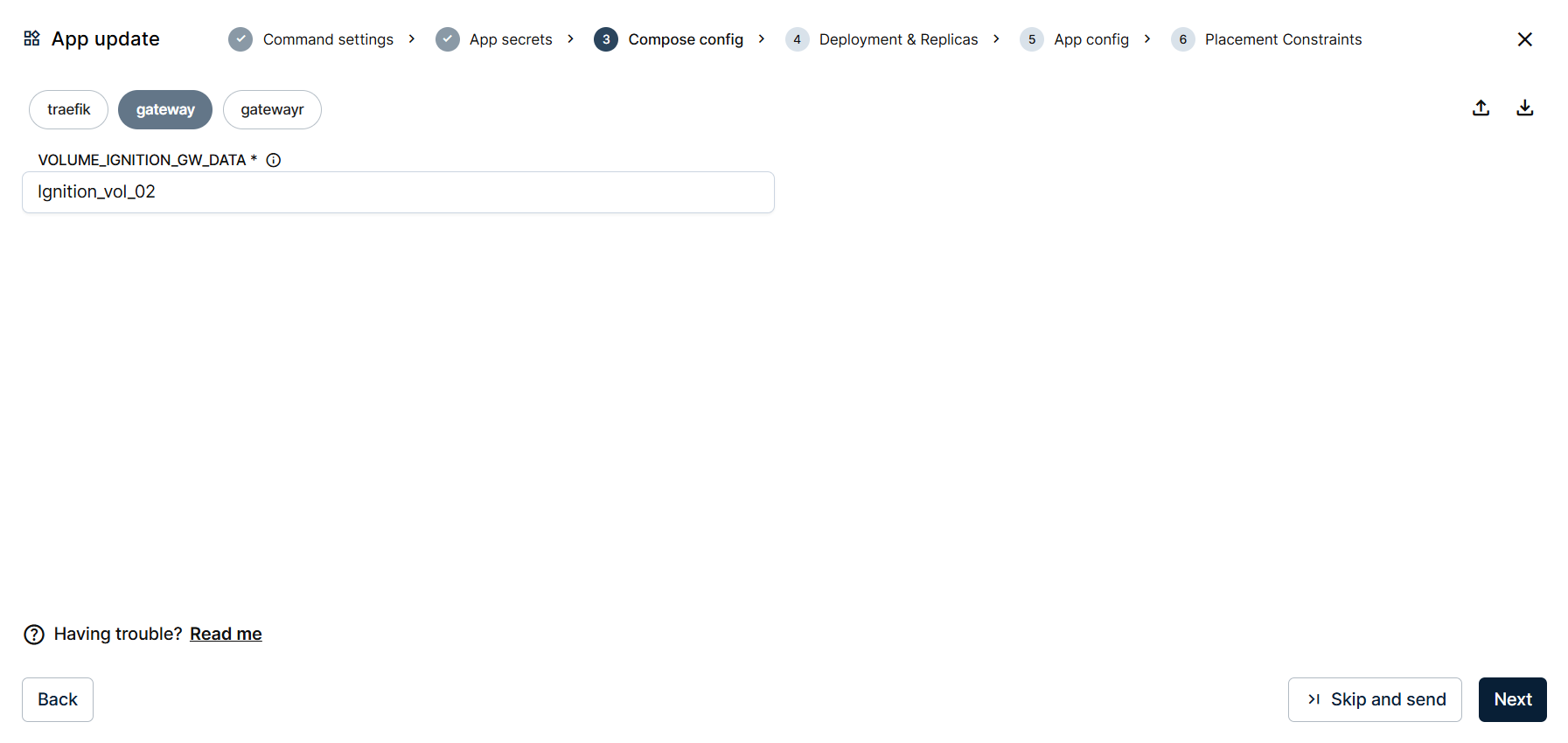

Compose Config step 3, gateway tab showing VOLUME_IGNITION_GW_DATA set to Ignition_vol_02

Compose config: gateway tab

Then set VOLUME_IGNITION_GWR_DATA to Ignition_vol_03 on the gatewayr tab.

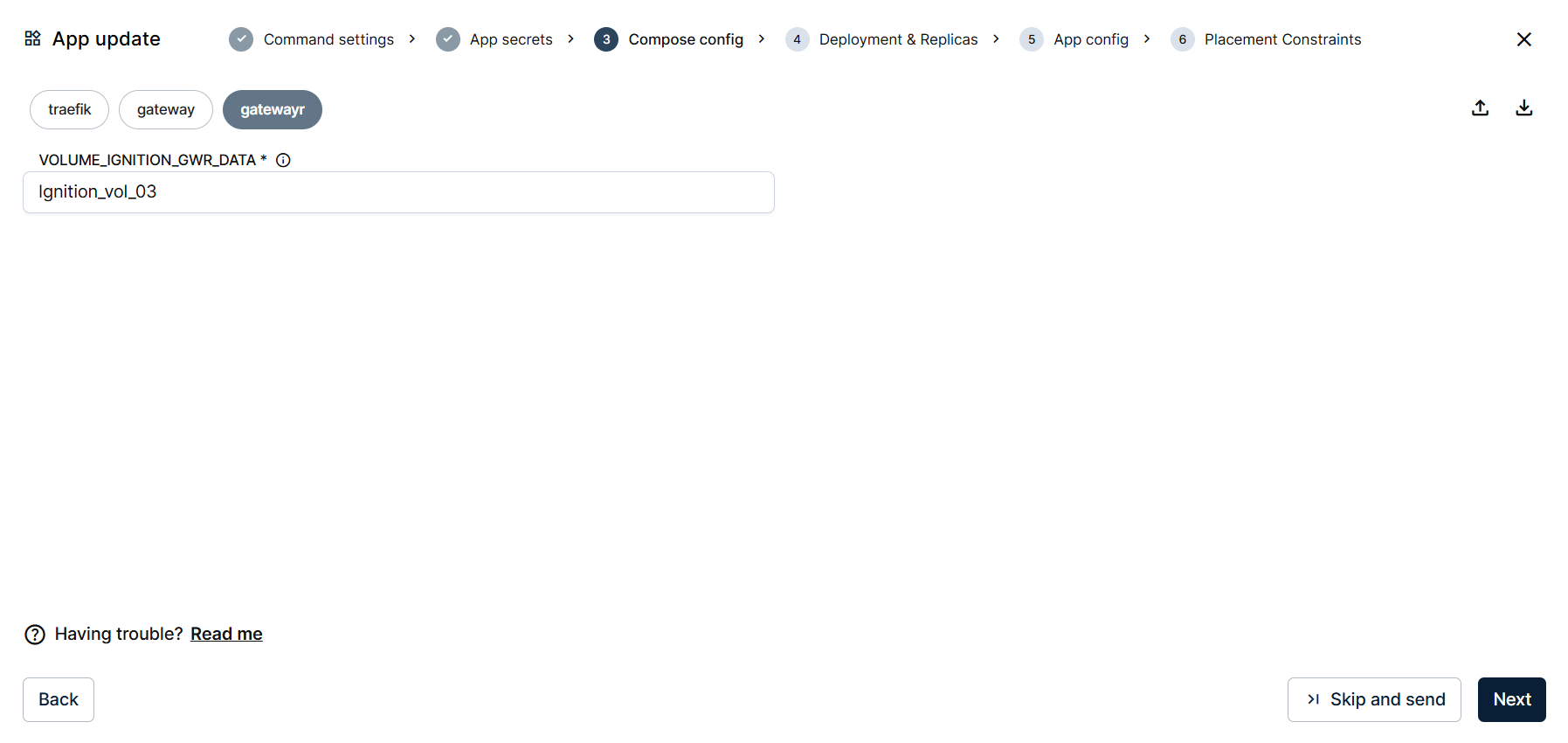

Compose Config step 3, gatewayr tab showing VOLUME_IGNITION_GWR_DATA set to Ignition_vol_03

Compose config: gatewayr tab

Finally, set VOLUME_IGNITION_CONFIG_STATE to Ignition_vol_04 on the ignition_config tab. This volume records which settings Barbara already applied to the pair, so the service does not start from scratch if the cluster reschedules it onto another node.

Compose config step, ignition_config tab with VOLUME_IGNITION_CONFIG_STATE set to Ignition_vol_04

Compose config: ignition_config tab

tip

The Backup is also reachable directly, bypassing Traefik, on the port set by Backup gateway direct port in the previous step. It defaults to 8089 and is useful for diagnostics when you need to reach the Backup without going through the proxy.

4) Deployment & Replicas​

There is nothing to change on this step. Leave gateway, gatewayr and bbrinit in the default Replicated mode with 1 replica each.

The traefik tab also shows Replicated, and you can leave it that way: the application forces one Traefik instance per node regardless of what this step says, through a reserved setting that accepts no other value. That is what keeps the entry point answering wherever the virtual IP currently is, even if a node goes down.

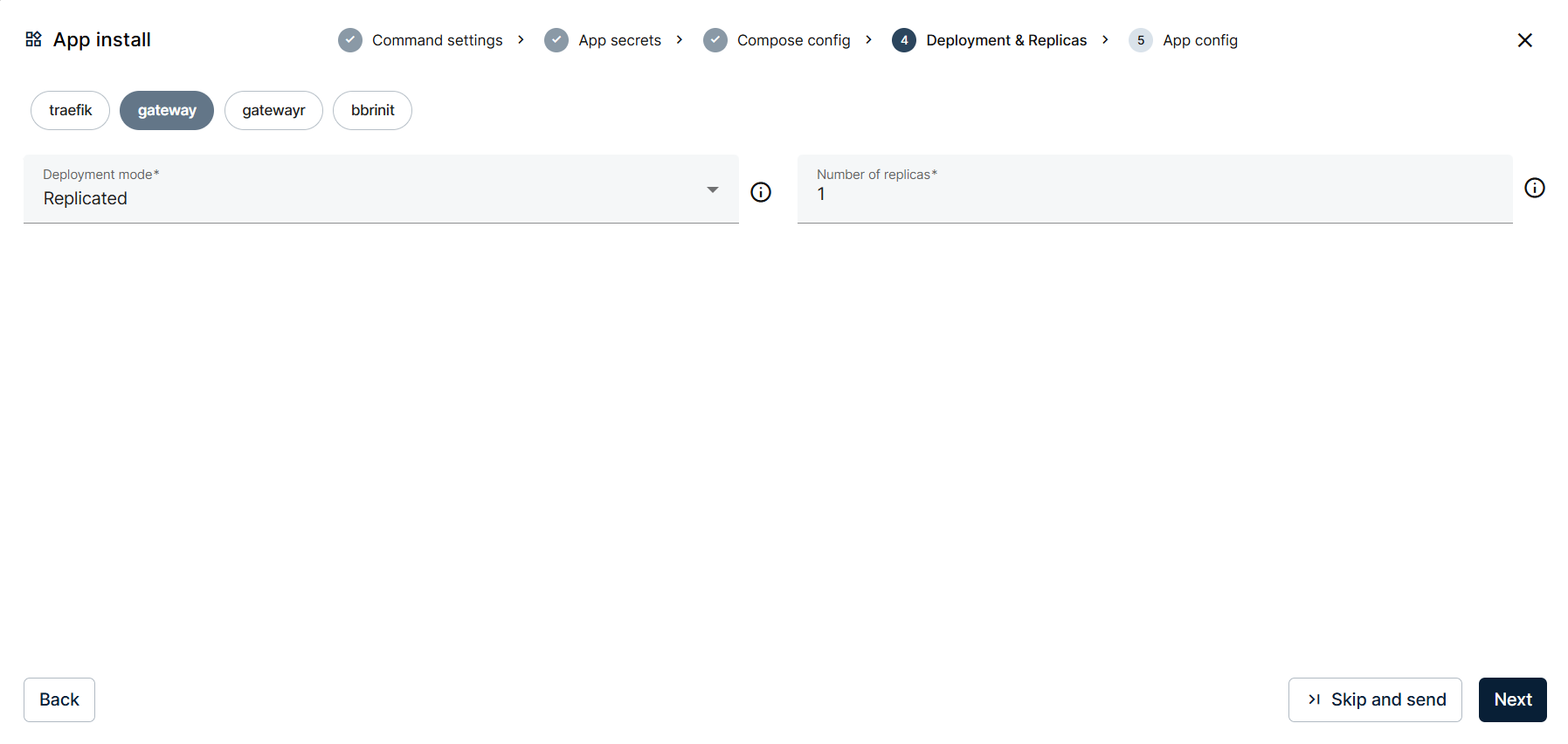

Deployment and Replicas step 4, gateway tab with Deployment mode Replicated and Number of replicas 1

Deployment & Replicas: gateway, gatewayr, and bbrinit

5) App config​

The editor opens already filled with the Ignition template: the sections you can declare, each one empty. This is where you configure the gateway pair without opening the Designer, and you can come back to it at any time after the deployment.

Leave the template as it is for now and click Send App. Barbara dispatches the deployment to the cluster, and the Application Config section below covers what to put in each part once the pair is running.

App config wizard step showing the Ignition template already filled in, with system, gateways, gatewayNetwork, opcuaDevices, opcuaServer, tagProviders, opcConnections and the Gateway Network sections

The App config step

Wait for both gateways to start​

The deployment now runs automatically. The initialization service prepares the environment, and both gateways start, initialize, and synchronize with each other.

Give it time. The primary gateway is usually serving within 3–5 minutes, but the backup waits for the initialization service to finish preparing its own volume before it starts at all, and on a cluster with shared storage that wait can run considerably longer. The workload card reports no error while this happens, because nothing has failed: the backup simply has not started yet. You can monitor the deployment from the Workloads tab; the workload card shows a Services section with the status of each service.

Cluster workload card for Ignition for Cluster showing every service running and the URLs section

Workload card with all services running

Access the Ignition Gateway UI​

Open the Ignition Gateway UI from the URLs section of the workload card, which provides HTTP and HTTPS access through Traefik, together with a direct link to the Backup and the exposed protocol endpoints:

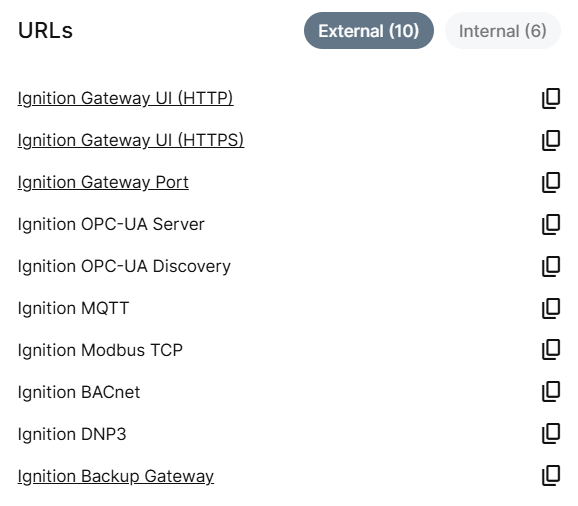

Workload card URLs section showing Ignition Gateway UI (HTTP), Ignition Gateway UI (HTTPS), Ignition Gateway Port, Ignition OPC-UA Server, Ignition OPC-UA Discovery, Ignition MQTT, Ignition Modbus TCP, Ignition BACnet, Ignition DNP3, and Ignition Backup Gateway

The workload URLs panel

  • Ignition Gateway UI (HTTP): routes through Traefik to whichever gateway is currently active.
  • Ignition Gateway UI (HTTPS): HTTPS entrypoint (active when TLS_MODE is not off).
  • Ignition Backup Gateway: direct access to the Backup on the port you set as Backup gateway direct port (8089 by default), bypassing Traefik. Use this for diagnostics when you need to reach the Backup specifically.

Log in with the credentials set in App Secrets; the defaults are bbruser / bbrpassword.

Verify Ignition redundancy​

With both gateways running and communicating over the Gateway Network, Ignition automatically elects a Master and keeps the Backup synchronized. You can verify the redundancy state from the Gateway UI.

In the left navigation, go to Platform → Redundancy.

The Master shows Gateway Role: Master, Activity Level: Active, and Sync Status: Good with the peer connected:

Ignition Gateway Redundancy page on the Master node showing Gateway Role Master, Peer Connected Yes, Activity Level Active, Sync Status Good, and all Redundancy Providers with Good status

Redundancy on the Master

Open the Ignition Backup Gateway URL to verify the Backup. On first startup it may show Sync Status: Out of Date. Once synchronization completes, the status changes to Good:

Ignition Gateway Redundancy page on the Backup node showing Gateway Role Backup, Peer Connected No, Activity Level Active, and Sync Status Out of Date on first startup before the pair fully connects

Redundancy on the Backup

Configure both gateways from Application Config​

The pair is running. Every device connection, every link to another gateway and every tag provider would still have to be entered by hand in the Designer on the Master, and entered again the next time you rebuild the cluster.

Application Config removes that step. You declare what the gateways should have in a JSON document in the Barbara Panel, and the configuration service keeps the pair matching it. It is pointed at both gateways and talks to whichever one currently holds configuration access, so after a failover it follows the promoted gateway without being told.

Open the workload in the Barbara Panel and edit App Config. The mechanism itself is the same one every Barbara workload uses, described in Application configuration types.

Example​

{
"ignition": {
"system": {
"debugLevel": "info",
"applyMode": "enforce",
"reconcileIntervalSeconds": 300
},
"gateways": ["http://gateway:8088", "http://gatewayr:8088"],
"opcuaDevices": [
{
"name": "PLC_Line1",
"driver": "ModbusTcp",
"hostname": "10.20.0.5",
"port": 502
}
],
"opcConnections": [
{
"name": "central-opcua",
"endpointUrl": "opc.tcp://10.20.0.50:62541",
"securityPolicy": "Basic256Sha256",
"securityMode": "SignAndEncrypt",
"authenticationType": "USERNAME",
"username": "barbara",
"password": "secret.centralOpcuaPassword"
}
],
"gatewayNetworkOutgoing": [
{
"name": "central-hub",
"host": "hub.plant.example.com",
"port": 8060,
"useSSL": true
}
]
}
}
  • gateways lists both halves of the pair. Keep both entries: that is what lets the configuration follow a failover.
  • opcuaDevices are the field devices the gateways poll. driver is the Ignition driver name, for example ModbusTcp.
  • opcConnections are OPC UA servers the gateways read from. A password here is never a literal: it names a secret, as described below.
  • gatewayNetworkOutgoing declares a link to another Ignition gateway. With useSSL set to true, Barbara establishes the certificate trust at both ends while the application starts, so you do not approve anything by hand.

What you can declare​

SectionWhat it configures
systemHow Barbara applies the rest: log level, apply mode, and how often it checks.
gatewaysThe gateways this configuration applies to.
opcuaDevicesDevice connections, one per field device.
opcConnectionsConnections to other OPC UA servers.
opcuaServerThe gateway's own OPC UA server.
tagProvidersTag providers, including one that mirrors the tags of another gateway.
gatewayNetworkThe Gateway Network security settings of the pair.
gatewayNetworkOutgoingLinks this pair opens to other gateways.
gatewayNetworkIncomingConnections from other gateways that the pair accepts.
databaseConnectionsDatabase connections.
historianProvidersWhere history is written.
storeAndForwardEnginesThe store-and-forward buffer of each database connection.
Looking for the full reference?

Every section, every field and its default value is documented in the application's technical notes on the Barbara Marketplace.

Secrets​

A password never goes into Application Config as a literal. Instead you give the passwords once, at install time, in the IGNITION_SECRETS setting of the bbrinit tab, as the base64 of a JSON object of name to value:

{"centralOpcuaPassword": "the-real-password"}

Then refer to each one from Application Config as secret.<name>, exactly as central-opcua does in the example above. The value is stored in the gateway's own secret store, and the gateway configuration only ever holds the reference.

How your changes are applied​

Barbara checks the pair against your document every few minutes, and again as soon as you edit it, so a change typically lands within a minute or two.

With applyMode set to enforce, Barbara corrects anything that drifts away from what you declared, including changes made by hand in the Designer. Set it to plan to see what Barbara would change, written to the application log, without touching the gateways.

Barbara only manages what you declare. Resources you created yourself and never named in the document are left alone.

warning

MQTT Transmission is not available in the cluster versions of this application: the module is not installed on the gateways, so declaring MQTT servers or transmitters has no effect. Use the single-node Deploy Ignition application when a site has to publish over MQTT.

Summary​

You have deployed a highly available Ignition cluster on Barbara. Traefik provides a single entry point to the active gateway, while Ignition continuously synchronizes the Master and Backup gateways.

If the active gateway becomes unavailable, Traefik redirects traffic in approximately 5–8 seconds, and Ignition completes the promotion in about 30 seconds, allowing the system to continue operating with minimal disruption.

You can monitor the redundancy state at any time from Platform → Redundancy in the Ignition Gateway UI.

From here, declare your device connections, OPC UA connections and Gateway Network links under Application Config and Barbara keeps both gateways matching them, through failovers and rebuilds alike. The same document deploys to the next cluster, which is what makes a site repeatable rather than hand-built.
