Step 4: Deploy the InfluxDB Ingester

warning

This is the 4th step of the guide "Deploy a Data Monitoring Solution". If you haven't done so already, jump back to the first step.

Overview

MQTT-InfluxDB Ingester is a data bridge that allow edge nodes to send data (like sensor readings) using MQTT protocol to InfluxDB, a database optimized for time series data. This simplifies data collection, stores it efficiently, and enables easier analysis.

Add the InfluxDB database to your library

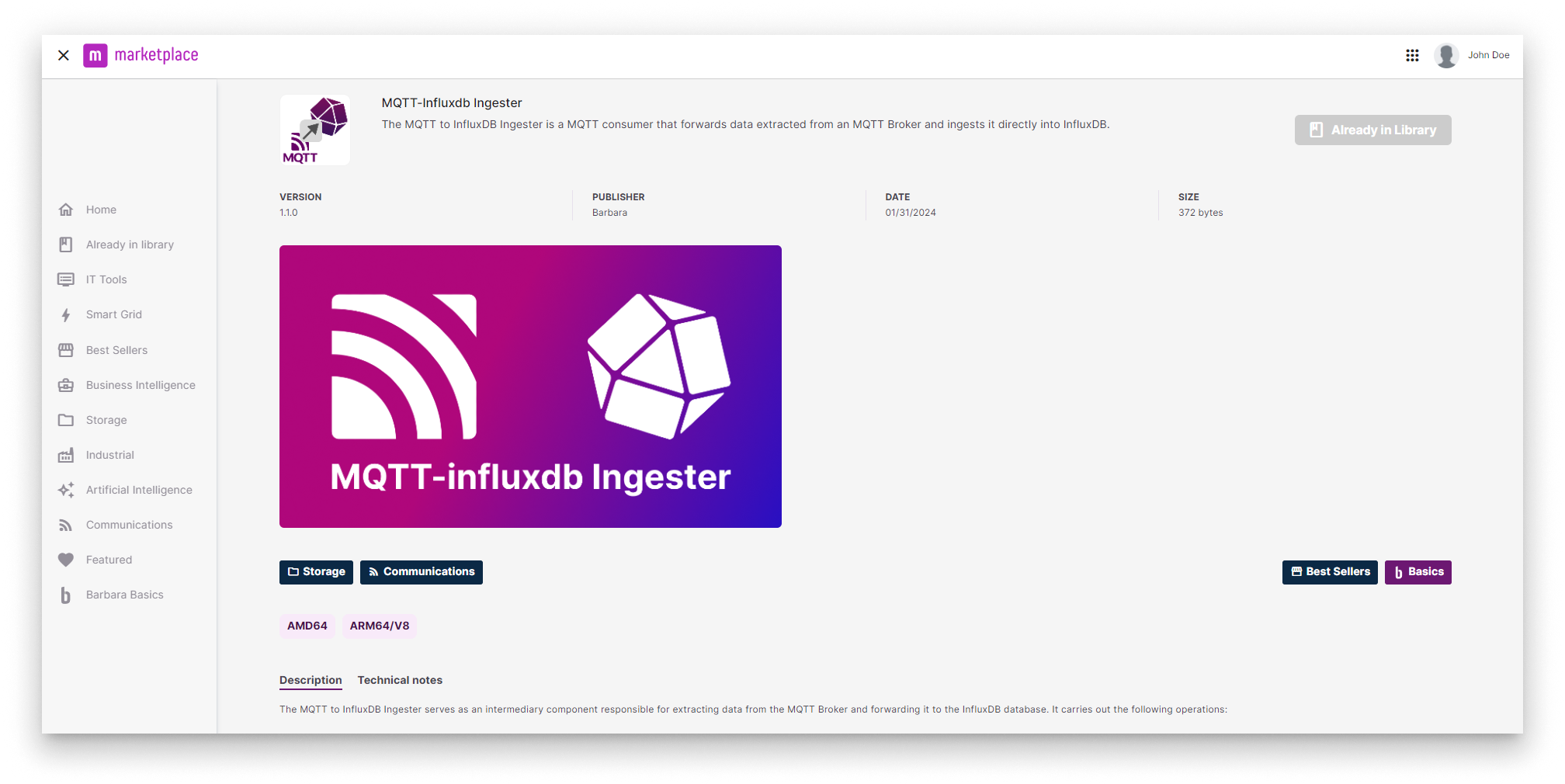

Ingester in Barbara Marketplace

Go to Barbara Marketplace, search for MQTT-InfluxDB Ingester and add it to your Panel's library.

note

You will find the MQTT-InfluxDB Ingester in this link of the Barbara Marketplace.

note

If you have been given a demo or trial account, this app may be already added to your Library.

Once added you will find it in your App Library. Let's deploy it to your Edge Node.

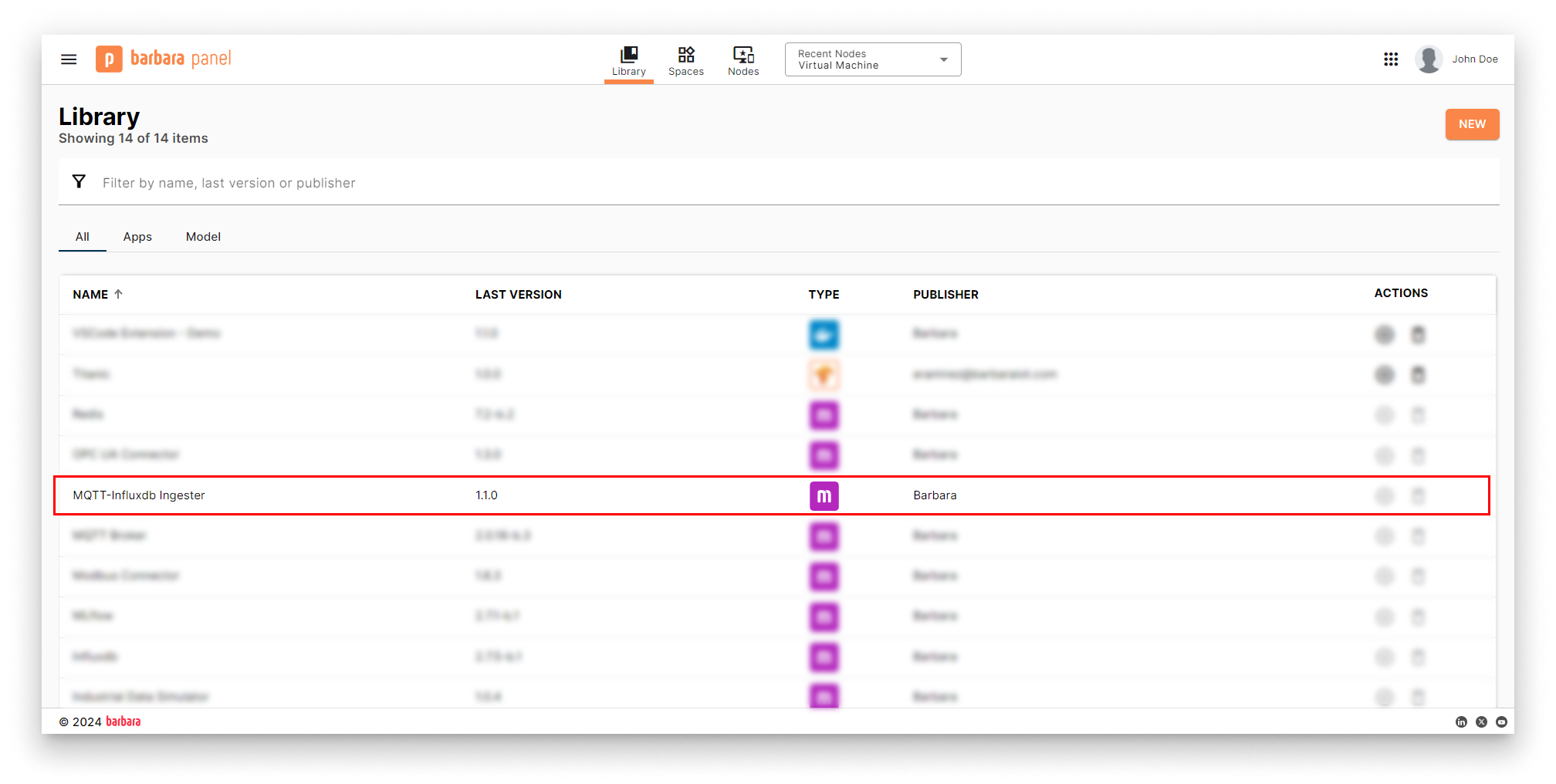

MQTT-InfluxDB Ingester in Panel's library

Install the Ingester app

1. Head to your Node's details view and click the + Add Card button.

Add New Card

2. Select the Marketplace app option in the dropdown menu.

Select Marketplace Option

3. Select Application and Version: Select the MQTT-InfluxDB Ingester app from the application dropdown list and pick the latest existing version from the version dropdown list. Then click ADD VARIABLES to proceed with the next step.

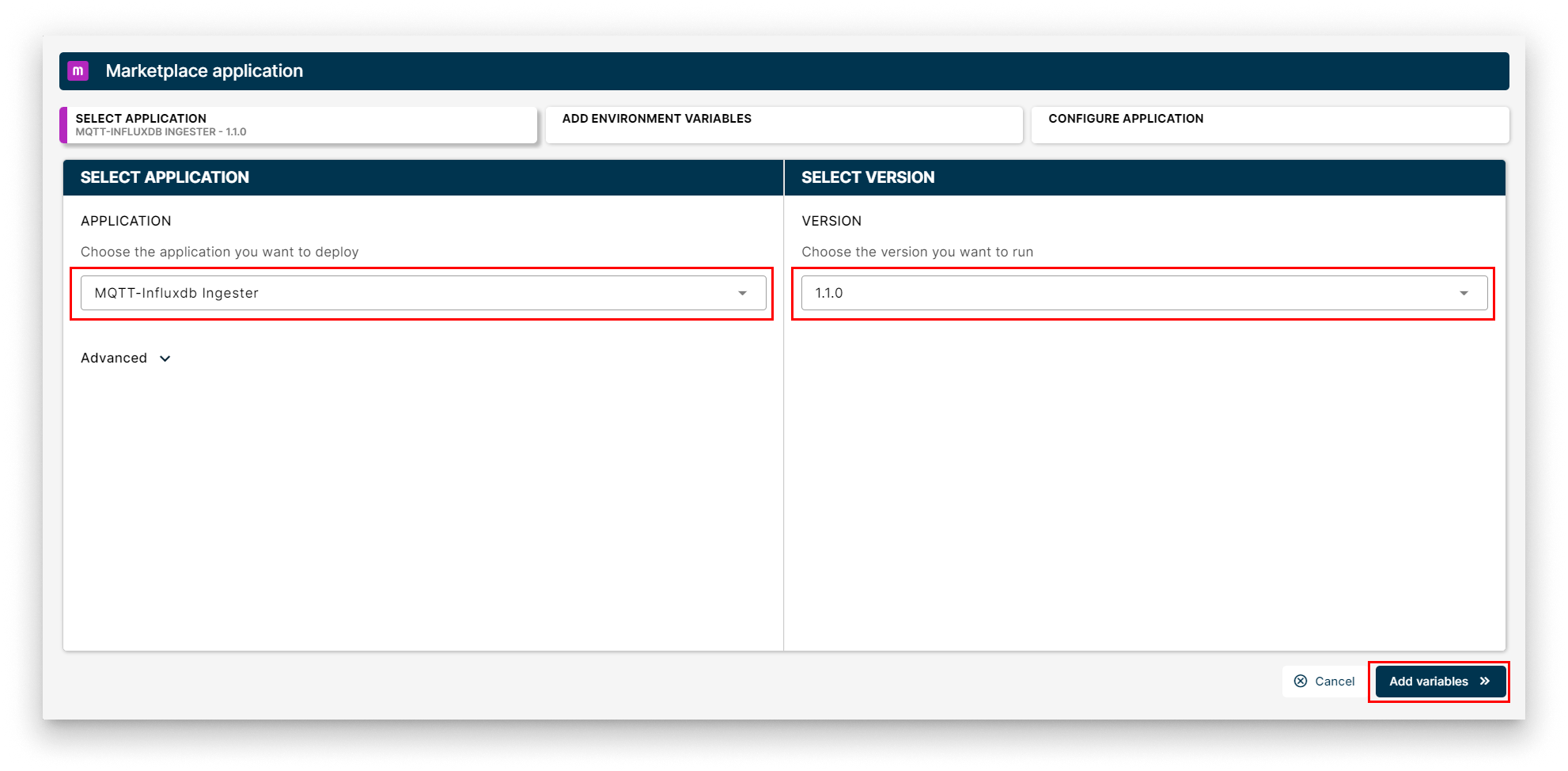

Select Ingester

4. Add Environment Variables Review the default configuration for env variables or leave it as-is. Technical notes explain each variable on the right side of the view. Once finish, just click CONFIGURE.

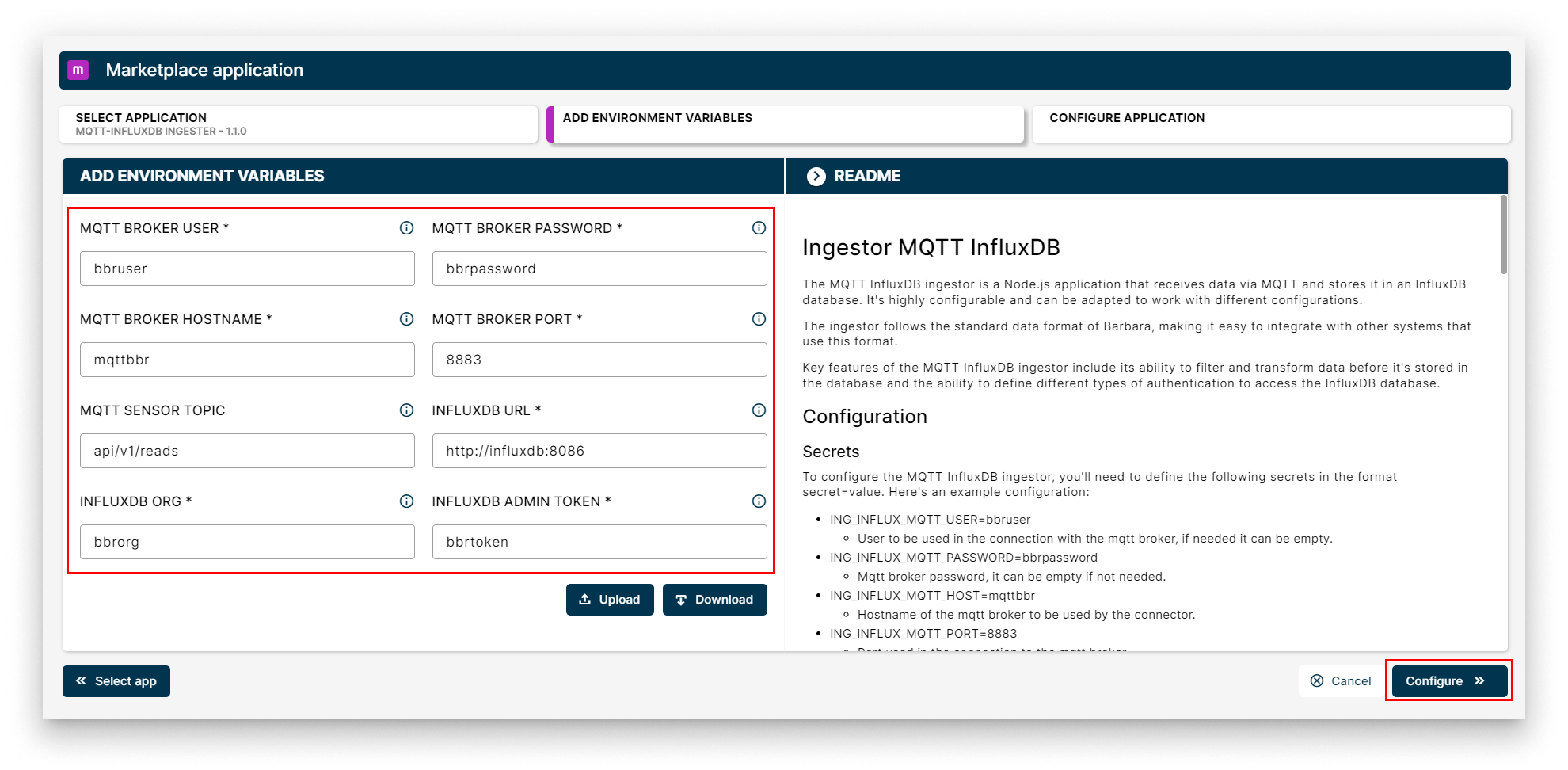

Add Env Variables

5. Add your app Config: This step allows you to make some additional configuration through a JSON-format text. Add the following JSON configuration in the editor and press Send.

{
  "ingestorMqttInfluxdb": {
    "inputs": [
      {
        "bucketInflux": "bbrbucket",
        "deviceDisplayName": "testDevice",
        "measurementInflux": "testDevice",
        "type": "read"
      }
    ],
    "system": {
      "bucketAutoCreate": true,
      "bucketAutoCreateRetention": 3600,
      "debugLevel": "info"
    }
  }
}

(Each JSON value is explained in technical notes on the right panel of the screen)

You can modify these values at your will but, again, if you are not too familiar yet with the application, we recommend you just leave it as it is.

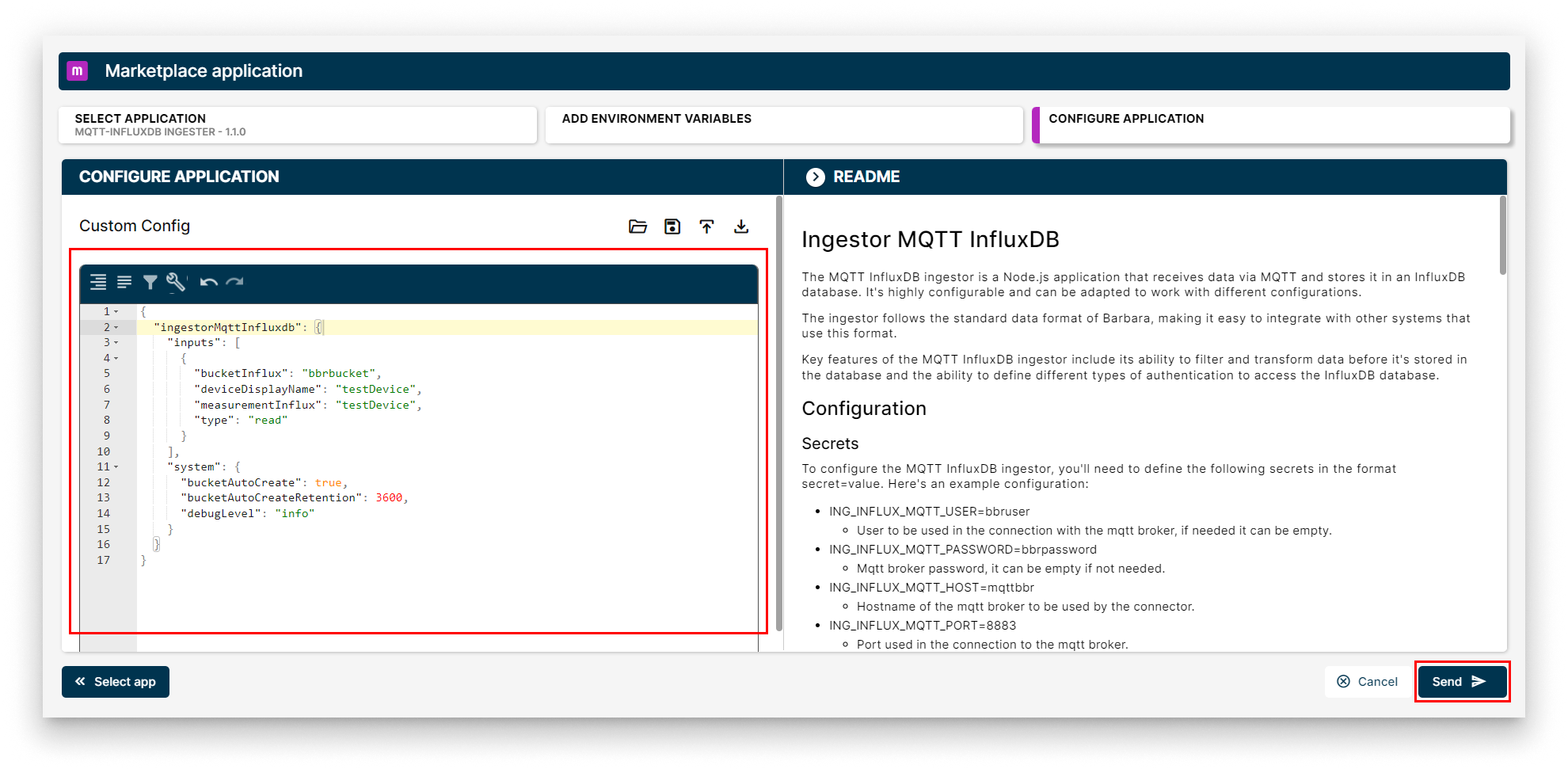

Configure Application

Verifying the Ingester app

Head back to your Node's details view. Within a few seconds, a new card should appear displaying the installed MQTT-InfluxDB Ingester. Look for the status label on the card - if it reads STARTED then your Ingester is up and running!

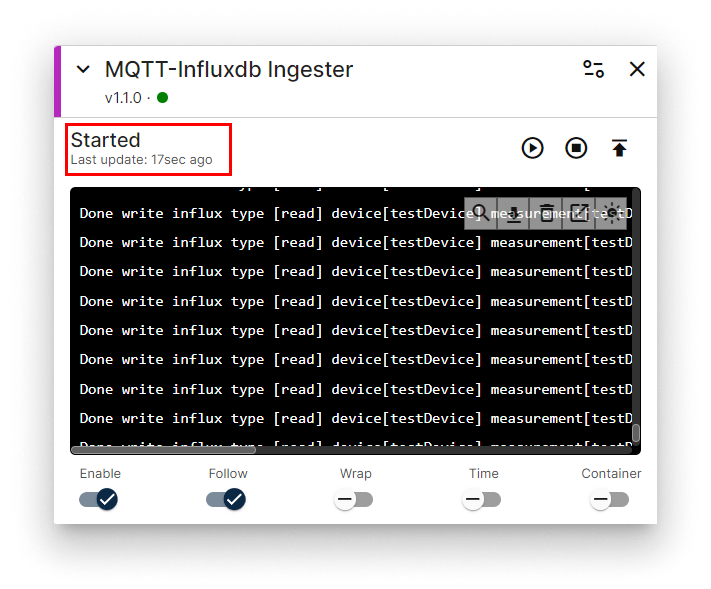

Ingester installed

Congratulations! Your InfluxDB database is running sending data from MQTT Broker to InfluxDB!

Let's continue by checking that InfluxDB is receiving data properly.

Verifying data in InfluxDB Database

Enter again in your InfluxDB database (remember your default username and passwords are bbruser and bbrpassword).

InfluxDB home

Once you log in, select the lateral menu option Data Explorer:

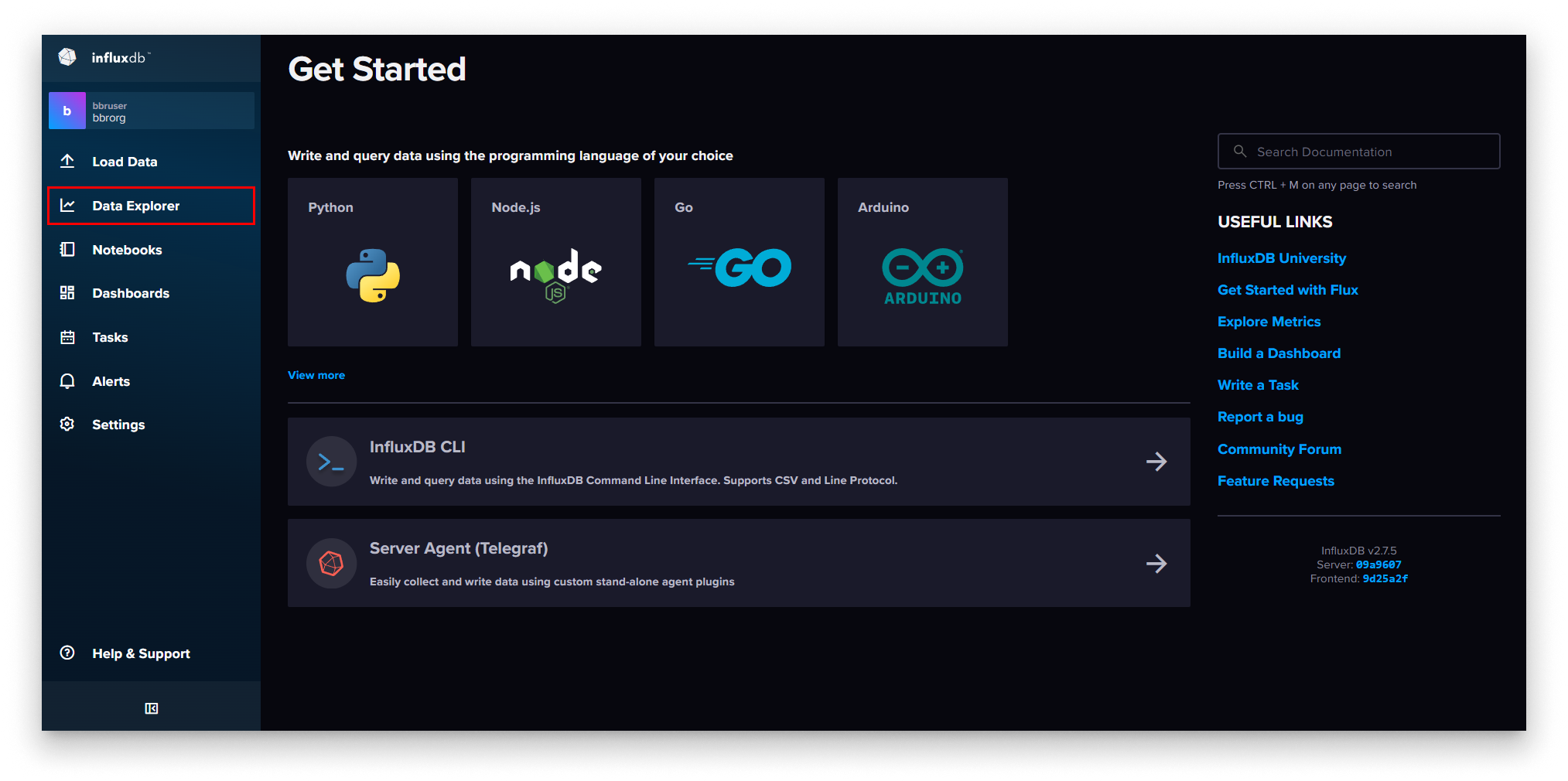

InfluxDB Select Data Explorer

In the Data Explorer view:

1. Select the bbrbucket in the "FROM" column.
2. Select testDevice in the filter "_measurement".
3. Select last as the aggregate function.
4. Click on the Submit button to send the query to the database.

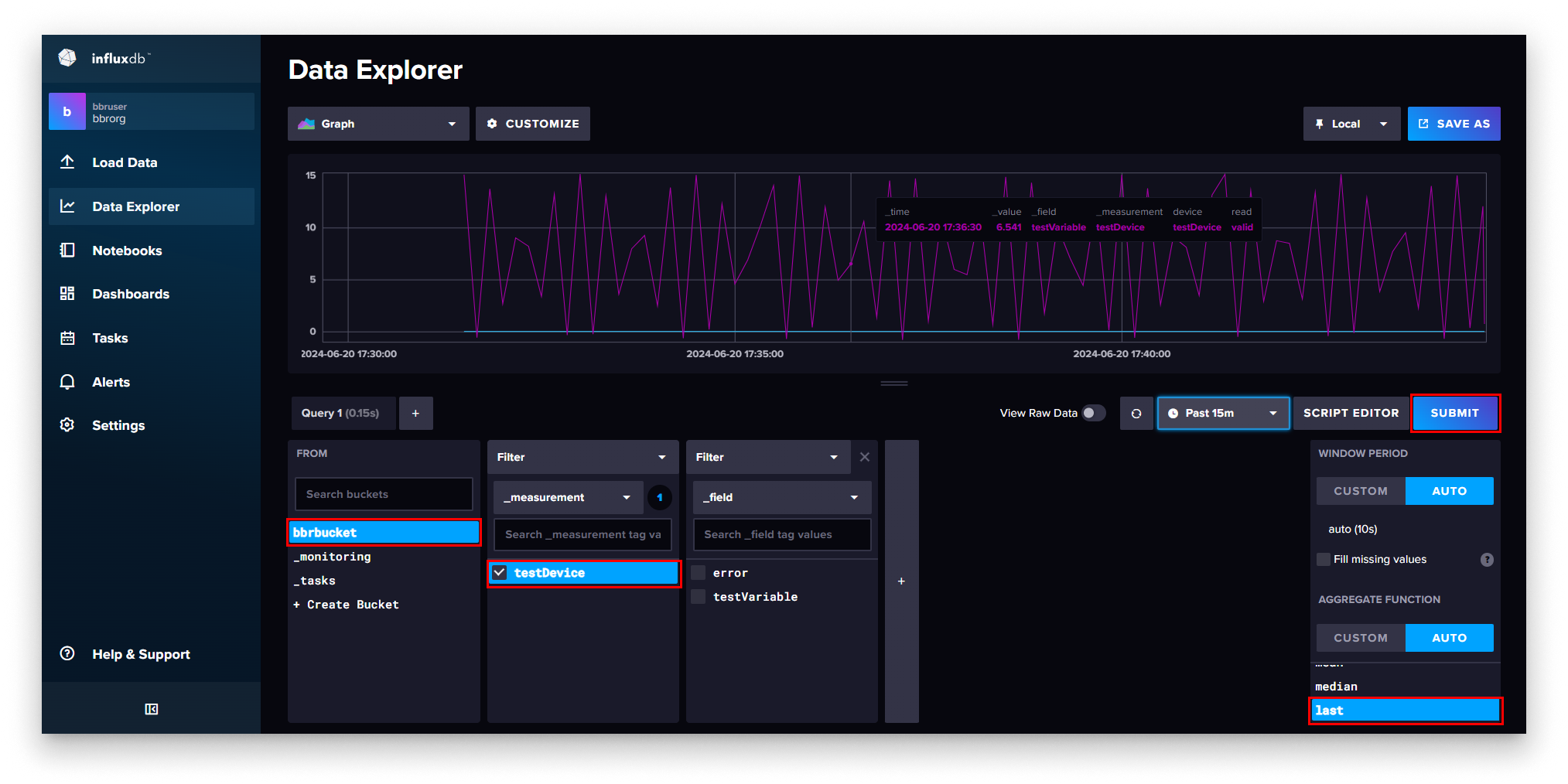

InfluxDB Submit query

Then you will see a graphic with last received measurements. This is the confirmation that data is being correctly received from MQTT Broker.
